CategoryWorm Gearboxes
Explore The Range

Worm Gearboxes

Compact, high-ratio worm gearboxes and worm gearmotors from Transtecno, built with a high degree of modularity to suit almost any application.

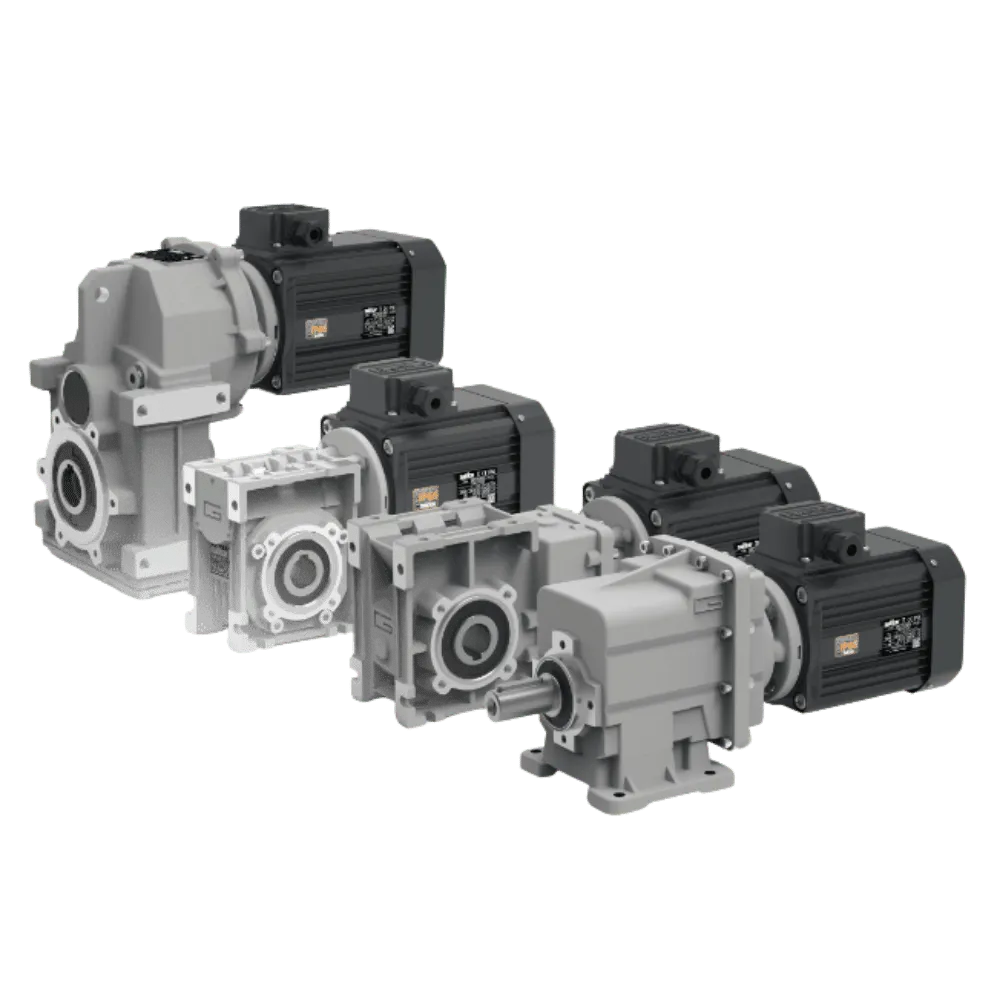

Transtecno Alu AC gearmotor range with aluminium gearboxes and AC electric motors
Aluminium AC Gearmotor Range

Transtecno Alu AC Gearmotors

The Transtecno Alu AC range brings together aluminium helical in-line, helical bevel, helical parallel, worm and combination gearmotor options for compact AC powered drive applications.

Aluminium AC gearmotor and speed reducer range for compact industrial drive applicationsIncludes helical in-line, helical bevel, helical parallel and worm gearmotor familiesDie-cast aluminium housings across key Alu AC gearbox ranges
View Product

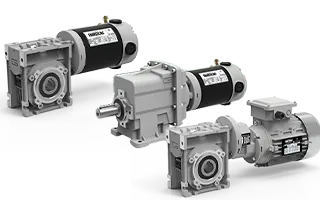

Transtecno Alu DC gearmotor with aluminium gearbox and DC electric motor
Aluminium DC Gearmotor Range

Transtecno Alu DC Gearmotors

The Transtecno Alu DC range combines EC permanent magnet and ND rare earth DC motors with aluminium helical, bevel helical, helical parallel, worm, pre-stage worm and double reduction worm gearmotor options.

Aluminium DC gearmotor and speed reducer range for direct current applicationsEC ferrite permanent magnet and ND rare earth permanent magnet DC motor optionsLow voltage 12 or 24 Vdc motor supply options across the range
View Product

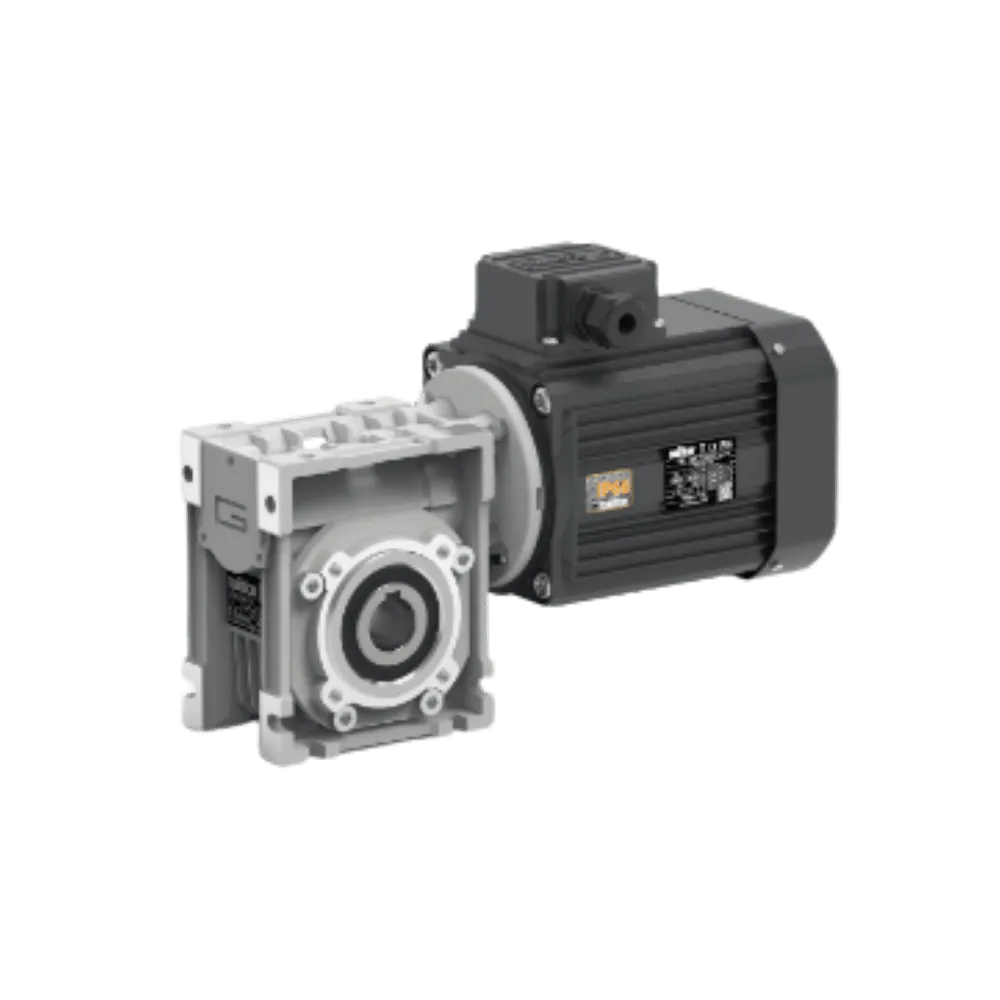

Transtecno CM series worm gearmotor with aluminium worm gearbox and black AC electric motor
Worm Gearbox

Transtecno CM Series Worm Gearboxes

Transtecno CM series worm gearboxes are the standard single-stage worm gearbox platform, available from CM026 to CM130 with modular input and output kits for compact right-angle drive applications.

10 gearbox sizes from CM026 to CM130Single-stage worm gear reduction with ratios from 5:1 to 100:1Die-cast aluminium housing on sizes 026, 030, 040, 050, 063, 070, 075, 090 and 110
View Product
Transtecno Alu BLDC brushless DC gearmotor with aluminium gearbox
Aluminium BLDC Gearmotor Range

Transtecno Alu BLDC Brushless DC Gearmotors

The Transtecno Alu BLDC range combines low voltage 24, 36 and 48 Vdc brushless DC motors with aluminium helical bevel, helical parallel, worm and planetary gearbox options for compact, high-efficiency DC drive applications.

Low voltage 24, 36 and 48 Vdc brushless DC gearmotor platformBrushless DC motors paired with aluminium CMB helical bevel, FT helical parallel, CM worm and P planetary gearbox familiesIP20, IP55 and IP66 range families available depending on motor and gearbox configuration
View Product

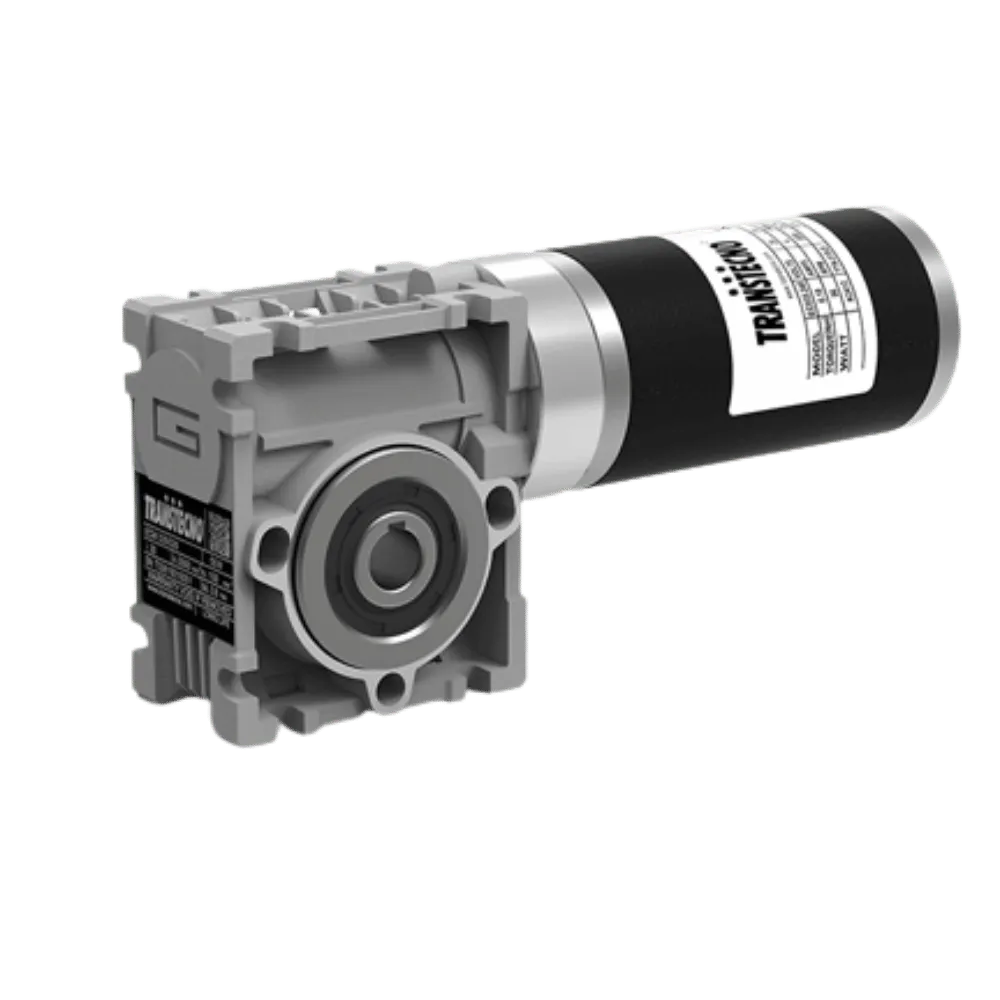

Transtecno ECM DC wormgearmotor with CM aluminium worm gearbox and ferrite permanent magnet DC motor
DC Worm Gearmotor

Transtecno ECM DC Wormgearmotors

Compact ECM DC wormgearmotors from the Transtecno ROBIN range, pairing low voltage ferrite permanent magnet DC motors with CM worm gearboxes for right-angle geared drive applications.

Low voltage 12 or 24 Vdc power supplyFerrite permanent magnet DC motor designMotor power ratings from 100 to 800 W S2
View Product

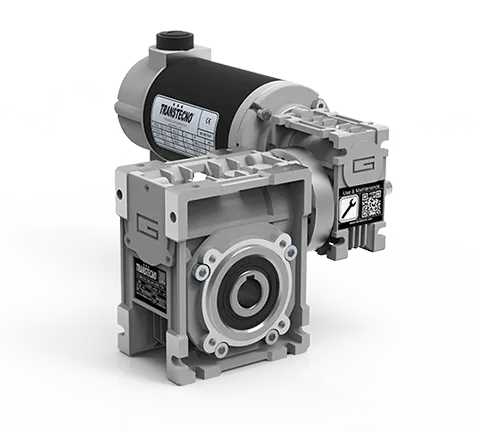

Transtecno ECMM DC double reduction worm gearmotor with two aluminium worm gearboxes and ferrite permanent magnet DC motor
DC Double Reduction Worm Gearmotor

Transtecno Permanent Magnets DC Combination Gearmotors ECMM

ECMM permanent magnet DC combination gearmotors combine two worm gear drives with a ferrite permanent magnet DC motor for compact low voltage applications needing very high reduction ratios.

Double reduction worm gearmotor with two worm gear drives and a permanent magnet DC motorLow voltage 12 or 24 Vdc power supplyFerrite permanent magnet DC motor design
View Product

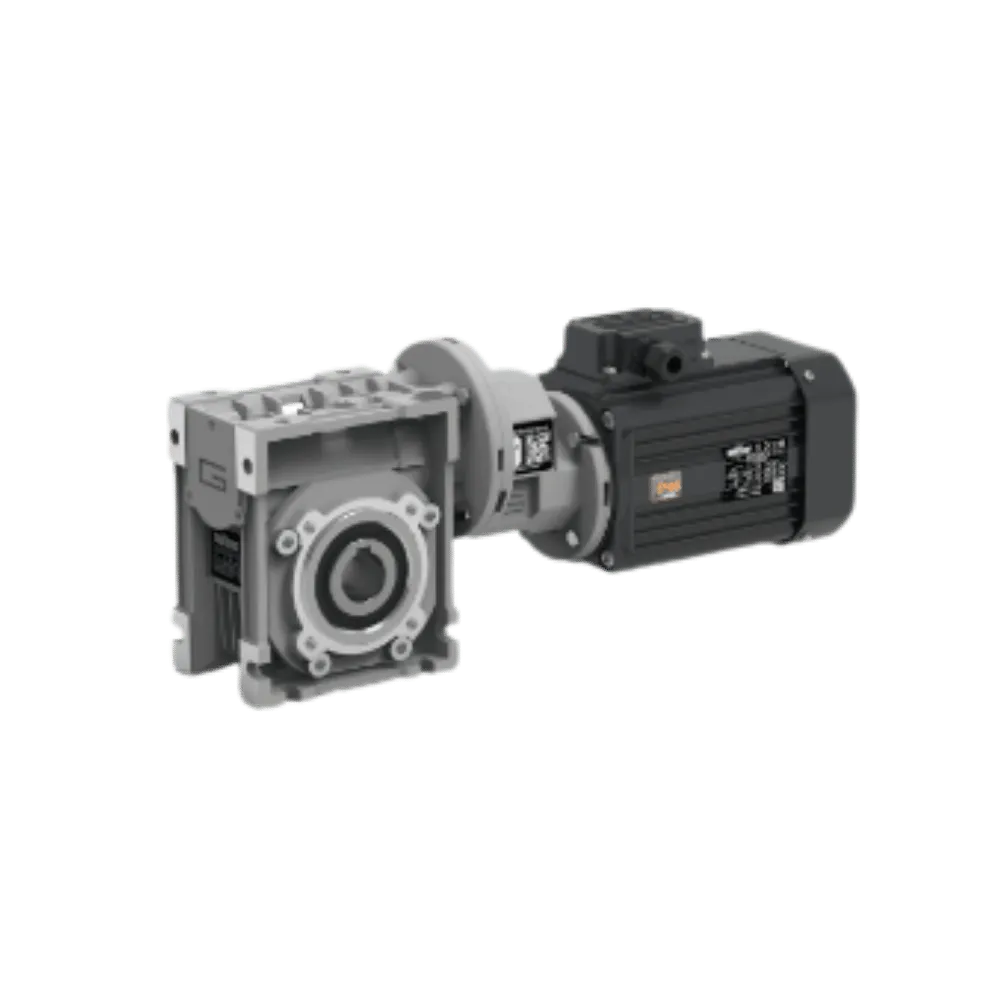

Transtecno CMP series pre-stage worm gearmotor with aluminium housing and integrated AC motor
Pre-Stage Worm Gearmotor

Transtecno CMP Pre-Stage Worm Gearmotors

Highly modular CMP pre-stage worm gearmotors with a fixed i=3 pre-stage ratio, die-cast aluminium housing and permanent synthetic lubrication. Designed for poultry feeding systems, trough handling and automated ventilation.

Fixed i=3 pre-stage gear ratio for extended overall ratio range up to 300:1Die-cast aluminium housing on sizes 026 through 110 for lightweight, corrosion-resistant operationCast iron housing on size 130 for heavy duty requirements
View Product

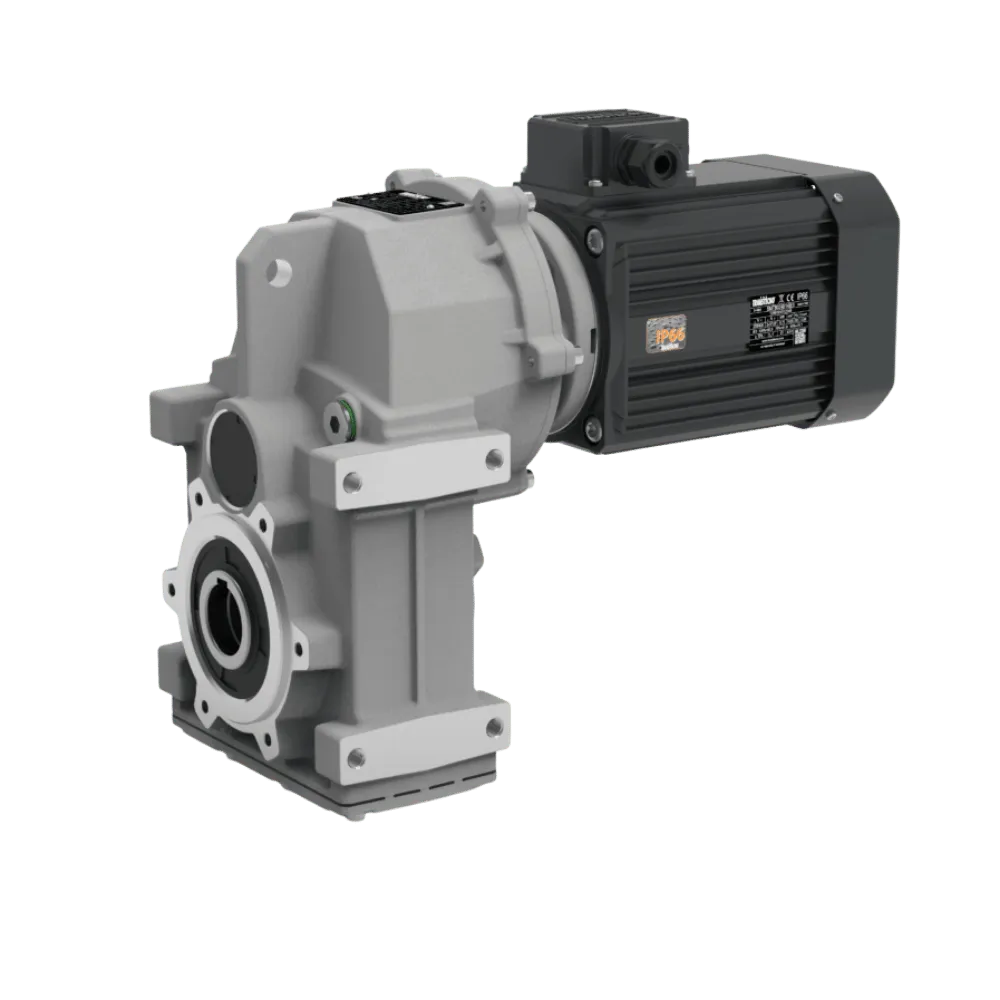

Transtecno ATS helical parallel shaft gearmotor with aluminium gearbox and AC electric motor
Helical Parallel Gearmotor

Transtecno Helical Parallel Gearmotors ATS

ATS helical parallel shaft gearmotors from Transtecno, built around a modular aluminium gearbox platform with hollow output shaft options, ground hardened helical gears and long-life synthetic oil lubrication.

High modularity using input and output kits to configure the required versionDie-cast aluminium housings and input flangesGround hardened helical gears for efficient, quiet power transmission
View Product
Transtecno CMV mechanical variator and worm gearbox
Mechanical Variator and Worm Gearbox

Transtecno CMV Mechanical Variators and Worm Gearboxes

CMV units combine a VAM mechanical variator with a CM worm gearbox for adjustable-speed right-angle drive applications requiring high reduction and compact layout.

Combines a mechanical speed variator with a worm gearboxContinuous 1:5 speed rangeSpeed regulation precision of approximately +/- 0.5 to 1%
View Product

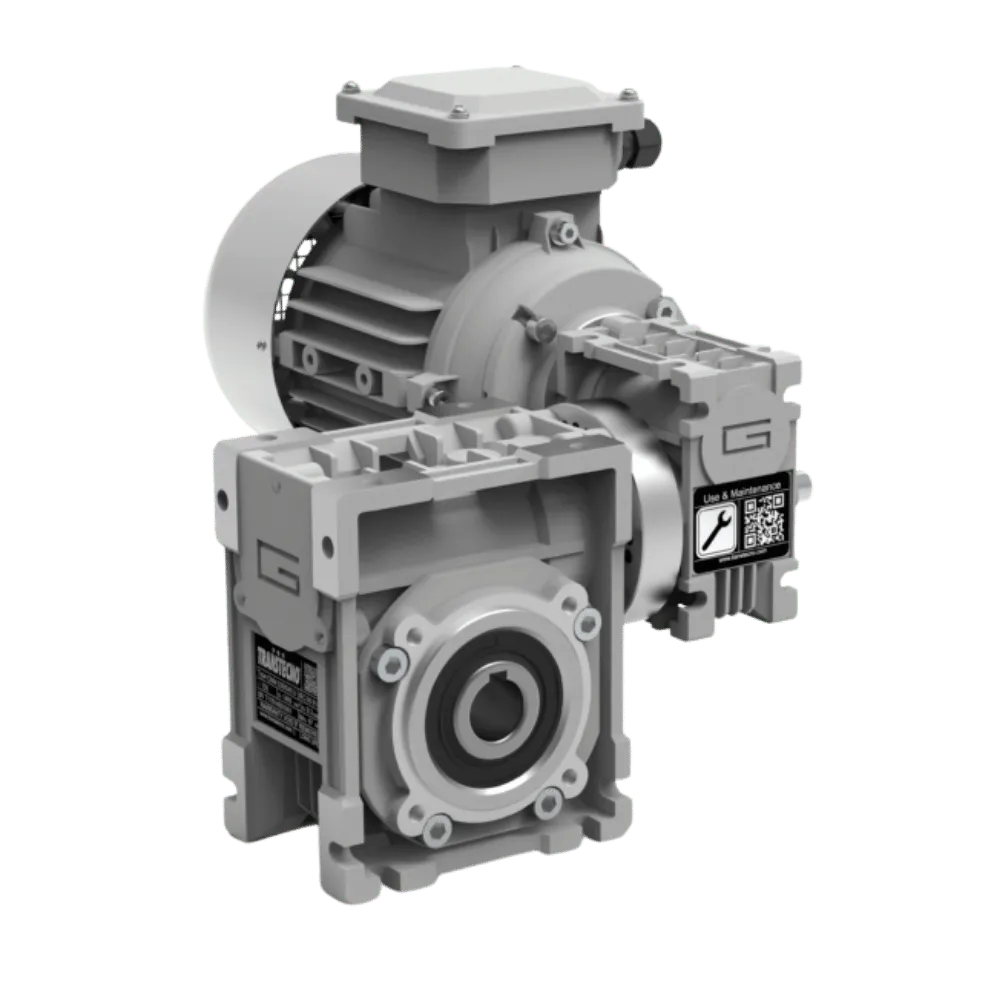

Transtecno CMM double reduction worm gearmotor with aluminium housing and IEC motor flange
Double Reduction Worm Gearmotor

Transtecno CMM Double Reduction Worm Gearmotors

High torque double reduction worm gearmotors from Transtecno, combining two worm stages with an AC motor for very low output speeds. Suited to poultry farm automation, window control and industrial low speed drives.

Double worm reduction for extremely high ratios up to 3600:1Die cast aluminium housing on sizes 026 through 110 for lightweight durabilityCast iron housing on size 130 for heavy duty applications
View Product

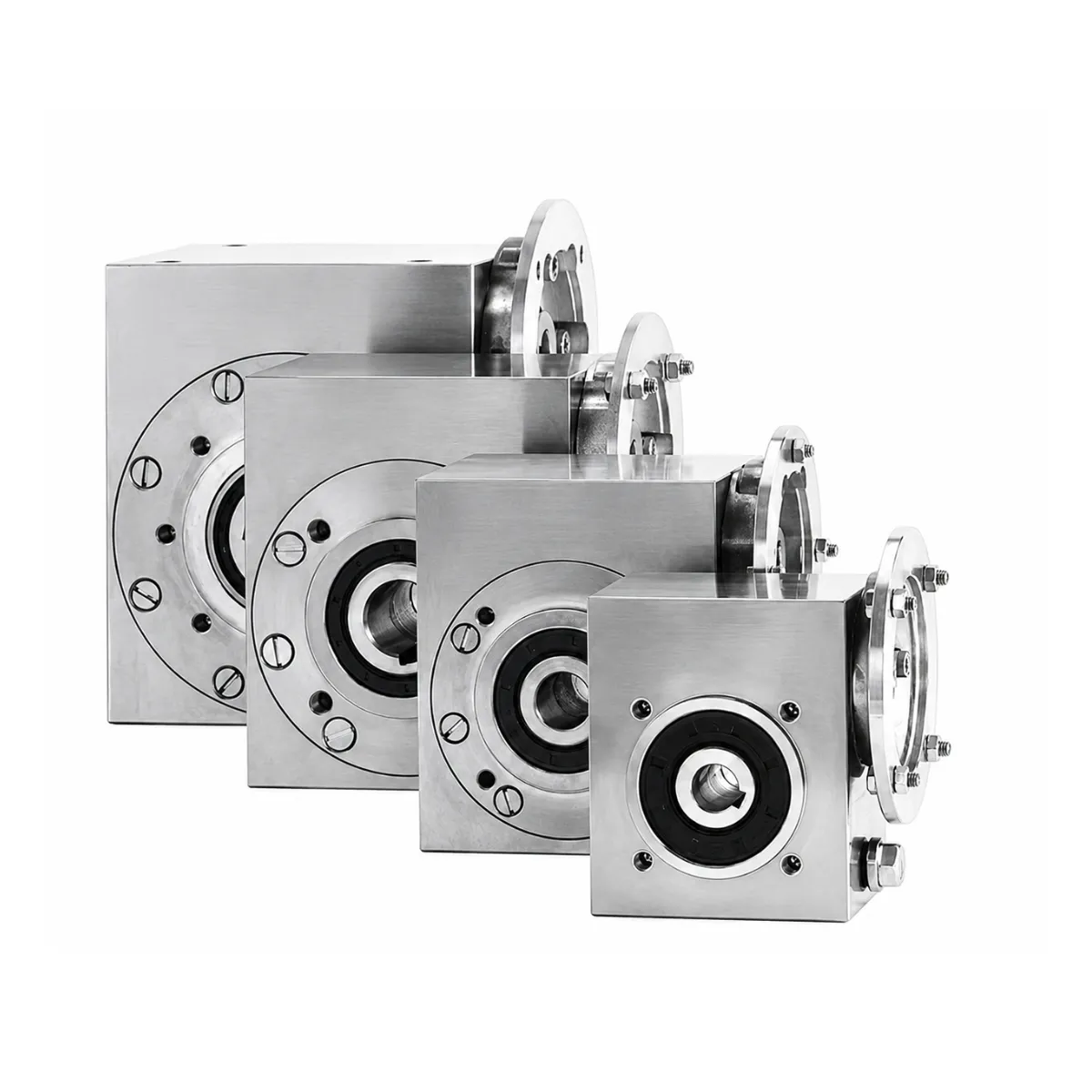

Stainless steel worm gearbox for food and marine applications
Stainless Steel Worm Gearbox

Stainless Steel Gearboxes

Stainless steel worm gearboxes built to resist corrosion in marine, food manufacturing and washdown environments where standard alloy gearboxes break down.

Stainless steel housing for high corrosion resistanceSuited to frequent washdown and high-pressure cleaningSmooth, hygienic surface finish with no exposed dead spaces
View Product
High Modularity
Diverse input and output kits allow each worm gearbox to be configured to your shaft, flange and mounting requirements.
Self-Locking Design
Worm gear reduction can prevent reverse rotation under load, removing the need for additional braking hardware in many applications.
Maintenance-Free Lubrication
Permanent synthetic oil lubrication is filled for life, with no scheduled oil changes required under normal operating conditions.
Australian Supplier
Supporting industrial, agricultural and OEM customers across Australia with worm gearbox product guidance.
Collection Overview

Compact, Self-Locking Power Transmission

Worm gearboxes use a worm and wheel arrangement to deliver high gear ratios and right-angle output in a compact, die-cast aluminium housing.

Transtecno worm gearboxes are supplied by Motordrives Australia across a power range of 0.06 kW to 7.5 kW, with torque capacity from 2 Nm up to 1200 Nm and gear ratios from 5:1 to 100:1. The worm and wheel design gives a compact, right-angle drive package, and at higher ratios the gearbox can hold a load in position without back-driving, reducing or removing the need for a separate holding brake.

Beyond the standard single-stage worm gearbox, Transtecno also builds pre-stage (CMP) and double reduction (CMM) worm gearmotor combinations that extend the available ratio range well beyond what a single worm stage can achieve, while keeping the overall drive package compact.

More About Worm GearboxesConstruction, features and product selection information

Worm Gearbox Construction And Features

Transtecno worm gearboxes use a die-cast aluminium housing, giving a lightweight, corrosion-resistant package suited to a wide range of industrial and agricultural environments. Ground gears reduce operating noise compared to cut gear alternatives, and permanent synthetic oil lubrication means the gearbox is filled for life, with no scheduled maintenance required under normal operating conditions.

High Modularity

A key feature of the worm gearbox range is its modularity. A broad selection of input and output kits allows each gearbox to be configured to match specific shaft, flange and mounting requirements, reducing the need for custom brackets or adapters during installation and future maintenance.

Beyond The Standard Single-Stage Worm Gearbox

Transtecno also builds worm gearbox and worm gearmotor combinations across the CM platform:

  • CM Series Worm Gearboxes: the standard single-stage worm gearbox range, available from CM026 to CM130 with modular input and output kits.
  • CMP Pre-Stage Worm Gearmotors: add a fixed pre-stage ratio ahead of the worm reduction stage, extending the overall ratio range up to 300:1 while keeping the package compact.
  • CMM Double Reduction Worm Gearmotors: combine two worm reduction stages with an AC motor for very low output speeds and high torque, suited to demanding low-speed applications.

Speak With Motordrives Australia

If you need help choosing a worm gearbox or worm gearmotor for your machinery or powered equipment, contact Motordrives Australia for technical product support, whether for a new project or a replacement enquiry.

Where Worm Gearboxes Are Used6 common applications and sectors

Worm gearboxes are used wherever high torque and significant speed reduction are needed in a compact, right-angle drive package.

  1. 01

    Conveyors

    Worm gearboxes help control conveyor and belt speed while transferring torque reliably across material handling systems.

  2. 02

    Elevators And Lifts

    Self-locking worm reduction supports vertical lifting and elevator drive applications.

  3. 03

    Agriculture And Farming

    Worm gearmotors are widely used for screw feeding, trough handling and automated ventilation in agricultural facilities.

  4. 04

    Robotics

    Compact, high-ratio worm gearboxes suit precision positioning and robotic drive axes.

  5. 05

    Water Treatment

    Slow, high-torque rotation from worm gearboxes suits valve actuation and treatment process equipment.

  6. 06

    General Industrial

    Wherever high torque and speed reduction is necessary, a worm gearbox can provide a compact, low-maintenance solution.

Technical Support

Information To Prepare Before Enquiring

The more information you can provide, the easier it is for our team to help identify a suitable worm gearbox or worm gearmotor solution.

  • Required output speed or gearbox ratio
  • Motor power, input speed or existing motor details
  • Required torque or load information
  • Mounting position and available space
  • Shaft size, orientation and connection requirements
  • Operating environment, duty cycle and any washdown or dust exposure

Product Selection Support

Motordrives Australia can help match a worm gearbox or worm gearmotor combination to your machinery requirements.

Power Range
0.06 kW to 7.5 kW
Torque Range
2 Nm to 1200 Nm
Ratio Range
5:1 to 100:1 (higher with pre-stage or double reduction)
CTA
Send details or photos
Request Support
Why Motordrives

Practical Support For Worm Gearbox Selection

Motordrives Australia supports engineers, machine builders, agricultural operators and maintenance teams with worm gearbox product guidance.

01

Application-Focused Advice

Our team looks at how the gearbox will be used, including duty cycle and environment, not just the part number.

02

Wide Configuration Range

Single-stage, pre-stage and double reduction worm gearmotor combinations cover a wide ratio and torque range from one platform.

03

Built For Enquiry-Based Sales

Many worm gearbox applications require technical discussion before the right size and ratio can be confirmed.

FAQs

Worm Gearbox FAQs

What is a worm gearbox used for?

Worm gearboxes are used wherever high torque and significant speed reduction are required in a compact, right-angle drive package, such as conveyors, elevators, agricultural equipment, robotics and water treatment equipment.

Are worm gearboxes self-locking?

At higher reduction ratios, a worm gearbox can be self-locking, meaning the output cannot back-drive the input under load. This can reduce or remove the need for a separate holding brake, depending on the application and ratio selected.

What is the difference between a standard worm gearbox and the CMP or CMM gearmotor ranges?

A standard worm gearbox uses a single worm reduction stage. The CMP range adds a fixed pre-stage ratio ahead of the worm stage to extend the overall ratio range, while the CMM range combines two full worm reduction stages for very low output speeds and high torque.

Do worm gearboxes require maintenance?

Transtecno worm gearboxes are filled with permanent synthetic oil for life, so no scheduled oil changes are required under normal operating conditions.

Do I need to know the exact model before enquiring?

No. If you do not know the exact model, send through your machinery details, photos and performance requirements and our team can help guide the selection process.

Need Help With Worm Gearbox Selection?

Send us your requirements and the Motordrives Australia team can help recommend a suitable worm gearbox or worm gearmotor solution.
