CM Series

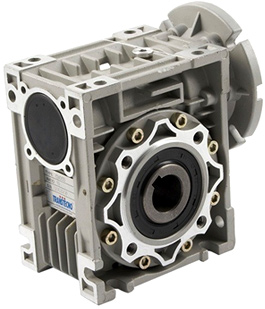

Single and double worm gear reducer; per-stage with single worm gear reducer.
CHARACTERISTICS::
CM worm gearboxes offered by TRANSTECNO have the following characteristics:
- The frames 030, 040, 050, 063, 075 and 090 are constructed with the Aluminum body, larger sizes are made of cast iron.
- Unit sizes CM030 up to CM075 are filled with long-life synthetic lubricant AGIP TELIUM VSF320. Unit size CM090 is filled with long-life mineral lubricant AGIP BLASIA 460. Unit sizes CM110 and CM130 are filled with mineral lubricant AGIP BLASIA 460: replace the oil after approximately 10000 hours running.
- The frames 075, 090, 110 and 130 are supplied with tapered roller bearings on the worm.
